Machine Features
◎ High speed, efficient, and low consumption
◎ Complete coil processing mode
◎ High reliability, low maintenance
◎ Low operating costs
◎ Replace acid pickling
Technical parameters:
-The top is centrally arranged with shot blasting equipment, which is compact in structure and easy to maintain.

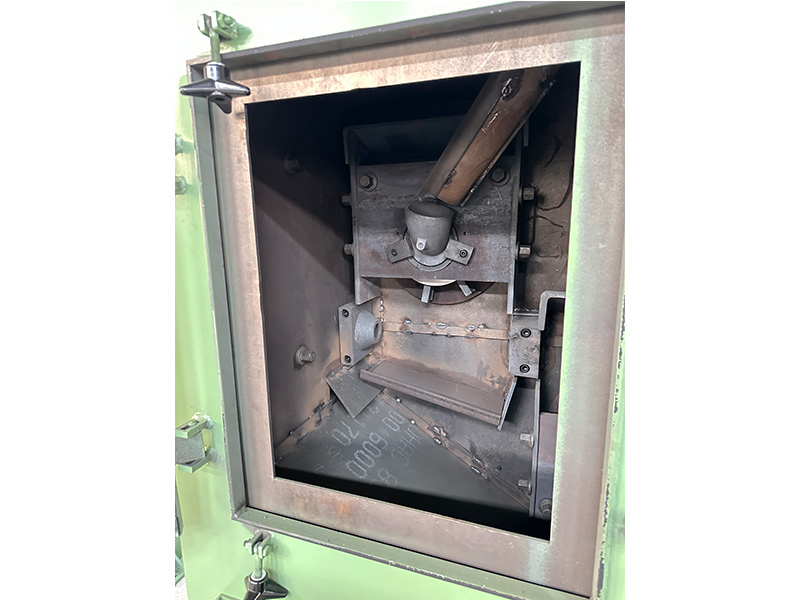

-Clean the indoor configuration with high-quality wear-resistant protective plates
– V-shaped roller, bar rotation, and uniform cleaning quality
-Has a wide cleaning range: φ16mm-φ80mm
-Configuration automatic loading and unloading mechanism
|
Model |
BC-11 |
BC-2BC-II |
|
Workpiece diameter |
φ16mm-60mm |
φ20mm-80mm |
|
Treatment speed |
Max 30m/min |
Max 30m/min |
|
Shot device power |
15-18.5KW |
15-22KW |
|
Shot device quantity |
3 |
3-4 |
|
Projection material size (Projectile) |
0.3mm-0.8mm |
0.3mm-0.8mm |
