Machine Features
◎ Fully protected no pit design
◎ Configuration wire dedicated built-in shot blasting machine

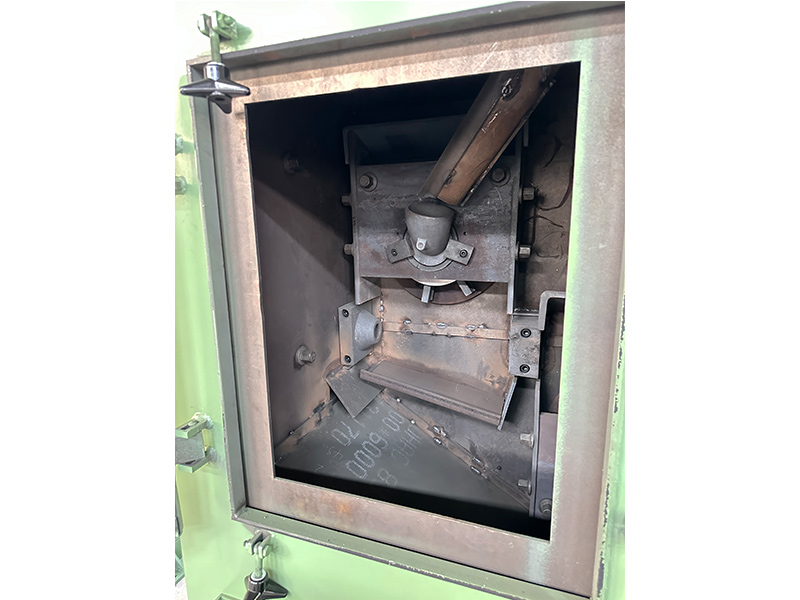

◎ The blades of the C shot blasting machine are specially designed according to the different diameters of the wires
◎ Has fewer vulnerable parts, simple and quick replacement, and low operating costs
◎ Replace acid pickling
◎ Can be assembled on a Combined drawing machine with a speed of up to 100M/MIN
Technical parameters:
| Model | XC-1 |
XC-2 |
| Wire diameter |
φ6.5mm-25mm |
φ16mm-36mm |
| Treatment speed |
Max 100M/min |
Max 80M/min |
| Shot device power |
18.5-22KW |
18.5-30KW |
| Shot device quantity |
4 |
4 |
| Projection material size (Projectile) |
0.3mm-0.8mm |
0.3mm-0.8mm |
